EA6
HANDLIFT TYPE EA6
Are you looking for a platform lift that can be adapted to stairs with turns or landings? Then the EA6 is the perfect choice. Designed specifically to match individual stairs, regardless of length and width, this stair lift can be seamlessly integrated into any interior without the need for extensive remodeling.
Unique design and flexibility
The platform lift is equipped with an aluminum rail system that also functions as an elegant handrail, making it both functional and aesthetically pleasing. The platform lift runs in the inside curve of the stairs and can turn both 90 and 180 degrees, making it ideal for stairs with curves and landings. With safety arms and flaps on both the front and back edge of the platform, it ensures maximum safety during use.
High usability and security
The platform lift is battery-powered, eliminating the risk of power outages and unsightly cables. It is delivered as a fully automatic lift, where both the platform and safety arms are operated automatically. In addition, it can be controlled by remote control, which significantly increases user-friendliness.
Technical data
- Load – 225 kg.
- Speed – Approx. 0.10 m/sec. (Speed is reduced in the turns)
- Supply – 1*100-240V AC – Lift 24V DC
- Battery type – Maintenance-free
- Motors – 24 V DC, Loading motor 24V DC, Boom motors 24V DC
Goal:
- Wall rail – Ø 5 cm.
- Parked width – 35 cm.
- Unfolded width – 105 cm.
- Box size – 100 x 80 cm. / 95 x 78 cm.
- Bed height – 4.5 cm
Security
The lift is equipped with safety arms and flaps on the rear and front edges of the platform. The platform flaps have a cut-off function in case of danger of crushing.
Additional security details:
- Overspeed guard and brake.
- Pressure-sensitive surfaces that stop the lift upon impact
- Battery operation
- End stop
- Thermal overload protection
- Manual emergency lowering mechanism
Individual adaptations and outdoor use

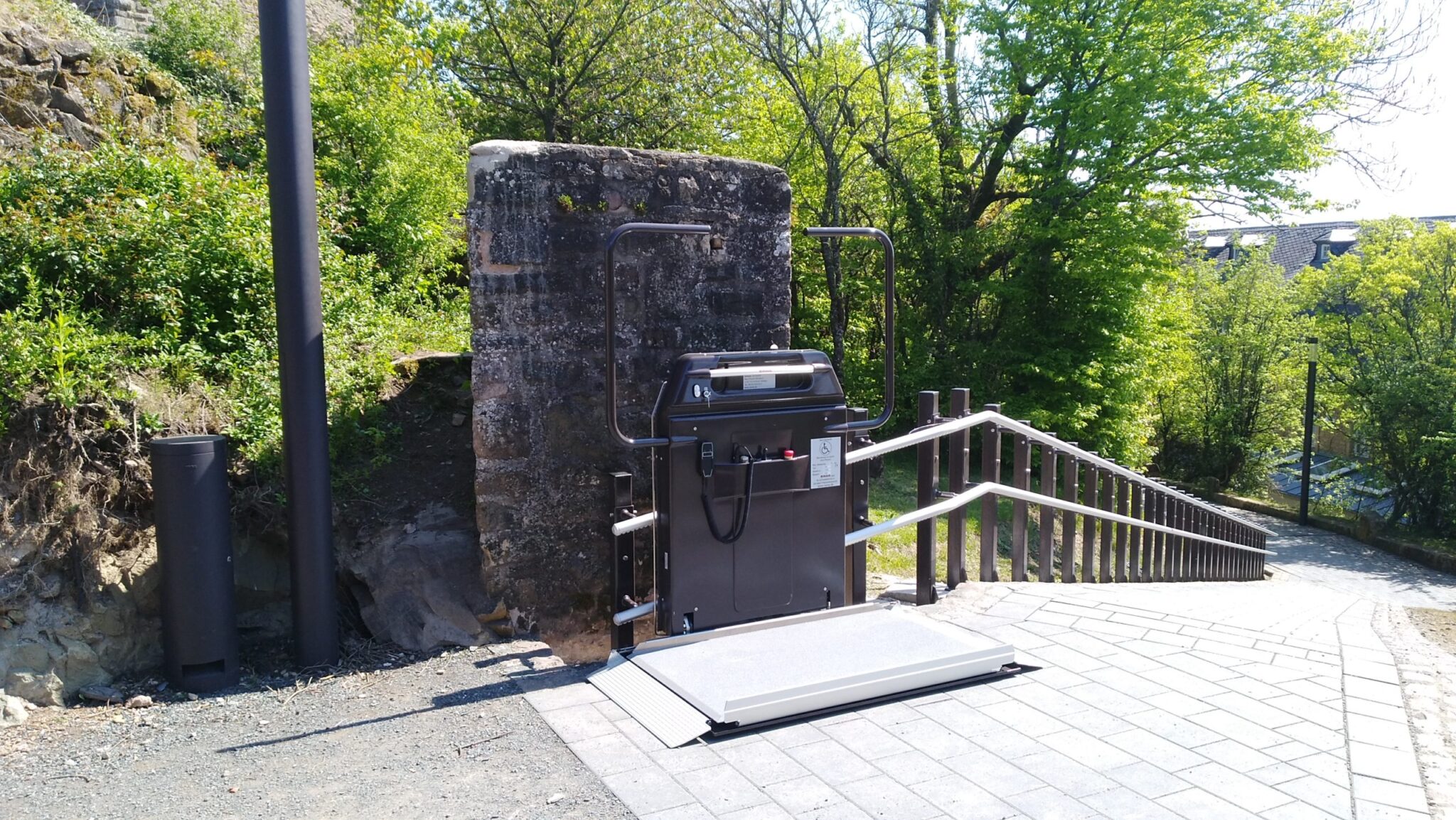

As standard, the lift is supplied with a 1000×800 mm platform, but the platform is available in different sizes and can thus be adapted to specific stair or wheelchair dimensions. The EA6 platform lift is also suitable for outdoor use, making it extremely versatile.
Handi-lift EA6 - The stairlift for every situation
Choose the Type EA6 platform lift for a tailor-made stairlift that combines flexibility, safety and aesthetics. Contact us today to find the perfect solution for your stair challenges.
